FPC-7899 One Door Access Control Electromagnetic Lock for Out Swing Door 300lbs TCP/IP Wiegand Controller Box, Outdoor Weatherproof Keypad/Reader, EM and Mifare Compatible, Software, Motion Detector

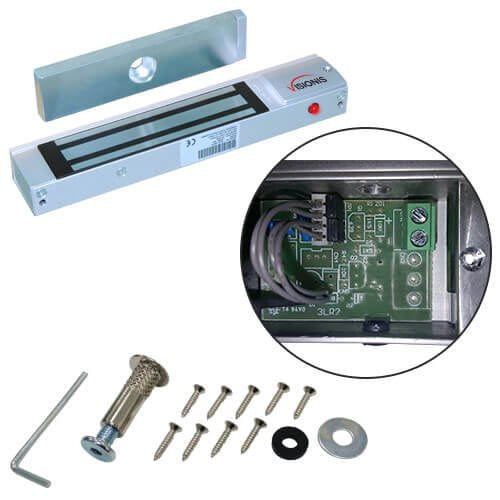

Model No. VIS-ML300LED:

• Voltage Input: 12 VDC / 24 VDC
• Current Draw: 12V / 300mA ; 24V / 150mA (±5%)
• Holding Force: Up to 300 lbs (136 kg)
• Anti-Rust Surface Treatment: Blue Zinc Plating
• Operating Temperature: 0~55° C ( 32~131° F)
• Operating Humidity: 0~95% ( non condensing)
• Weight ( Magnet): 0.6 kg (±1%)
• Dimensions:
  Magnet ? (L)170x(W)35x(T)21 mm
  Armature ? (L)130x(W)33x(T)11 mm
• Green/Red LED Indication for EM Lock Status

Model No. VS-AXESS-1ETL:

• 32-bit high-speed processor.
• TCP/IP network communication, with self-adaptive network interface. The communication data is encrypted to ensure information security.
• Supports Wiegand interface for accessing card reader. Wiegand interface supports W26/ W34 and is seamlessly compatible with third-party card reader.
• Massive storage with 10.000 users and 50.000 card swiping records.
• Supports first card function, super card and super password function, online upgrade function and online remote control of the doors.
• Supports various card types such as normal/disabled/blacklist/patrol/visitor/duress/ super card, etc.
• Supports tamper-proof alarm for card reader, unsecured door alarm, forced entry door alarm, alarm for door opening timeout, duress alarm, and alarm for invalid card swiping attempts alarm, case in alarm and restore, insufficient storage alarm for offline event, network break alarm.
• Supports online and offline operating mode.
• Supports time synchronization via NTP, manual or automatic method.
• High/low temperature resistant design -20°C to +65°C (-4°F~+149°F)
• VS-AXESS Software available languages: English, Spanish, Croatian, Danish, Finnish, French, German, Hungarian, Italian, Lithuanian, Nederlands, Norwegian, Polish, Portuguese, Russian, Serbian, Slovakia, Swedish, Turkish, and much more.

• Input Voltage: DC 12V
• Idle Current: ?25mA
• Card Reading Distance: 2 ? 3 cm (0.78 ? 1.18 in.)
• Card Frequency: 125KHz for EM and HID // 13.56MHz for Mifare
• Card Transmission Format: Wiegand26
• Keypad Transmission Format: 4bit, 8bit and Virtual card number
• Operating Temperature: -45°C ~ 55° C (-49°F ~ 131°F)
• Operating Humidity: 0% ~ 95%
• Product Size: 118Lx81Wx21H (mm) ? 4.64Lx3.18Wx0.82H (in.)
• Protection Level: IP68 ? No ingress of dust; complete protection against contact (dust tight), and waterproof
• If you have a phone with NFC built-in, you can use it as a card (It?s not an additional app. Not compatible with iOS).

Model No. VIS-7005:

• Contact Rating: 3A/12-24V
• Output Contact: NO/NC/COM
• Power: 12VDC ? 24VDC
• LED Color: Blue (Stand by Mode), Green (Active/Open Mode)
• Panel: 4mm (0.15in.) Thick Aluminium alloy (CNC)
• Suitable for Door: Hollow Door
• Mechanical Life: 100.000 tests
• Operating Temperature: -20°C~+55°C (14°F-131°F)
• Operating Humidity: 0-95% (relative humidity)
• Weight: 0.065kg
• Dimension Of Plate: 86L × 50W × 25H mm ? 3.38L x 1.96W x 0.98H in.

• Supply Voltage: 12-24VDC or VAC
• Detection Type: Passive infrared
• Relay Hold Time: 0.5-64 seconds
• Operating Temp: -14° F to 131° F(-10° Cto55°C)
• Weight: 0. 4Ib (0. 18kg)
• Range Coverage: 12x5 ft at 7ft high,30x12 ft at 15 ft high (Adjustment)
• Dimensions: 6.53"Wx1. 57"Hx1. 53"0 ( 166x40x39mm)

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

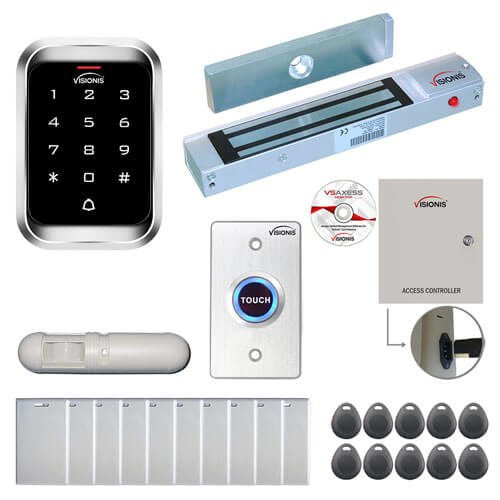

• Kit Includes:
  (1) VIS-ML300LED: 300lbs Indoor Electric magnetic with LED Sensor.
  (1) VIS-3000: Access Control Indoor + Outdoor Rated IP68 Metal Anti Vandal Digital Touch Keypad + Reader Standalone + Wiegand 26 Wide Design No Software EM + Mifare Cards Compatible 2000 Users.
  (1) VS-AXESS-1ETL: One Door Network Access Control Panel Controller Board With Cabinet TCP IP Wiegand.

• (1) VIS-7005: Indoor Ultra Thin Push + Touch To Exit Button For Door Access Control With LED Light NC COM And NO Outputs.
  (10) VS-VIS-APROXCARD/26: Access Control Proximity contactless Smart Entry card 1.8mm thick 26 bit 125khz.
  (10) VS-VIS-KEYTAG: Access Control Proximity contactless Smart Entry Keyfob 26 bit 125khz.
  (1) AL-OD22: Request to Exit PIR.
